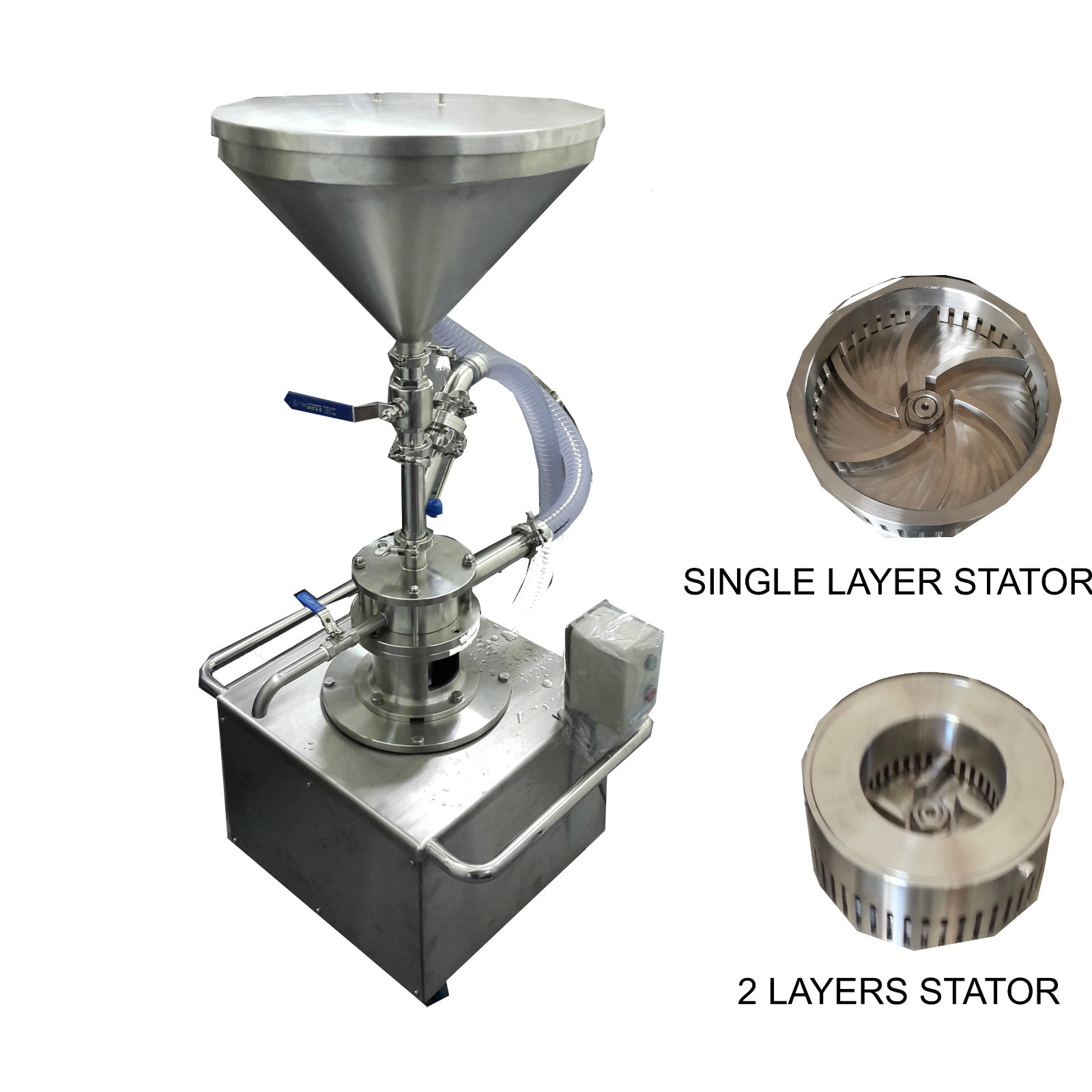

VT300-10 7.5kW/10hp Vertical Inline Homogenizer ORDER CODE:6509300
VT300-10 is a Self Pump Powder Liquid Inline Homogenizer - is high-performance dispersing machine for the production of emulsions and suspensions in self pump complete circulation operations. Using the rotor-statorand vacuum self generation principle, it is best suited for applications that cannot be accomplished using conventional stirring methods. The machine is capable of processing highly abrasive products and media with a viscosity of up to 80.000 mPas.
Package Item Included :
1x Motor 3 phase AC Induction motor , 1x 2 inch inlet outlet hose connector, 1x 25kgs powder funnel
-The combination of processing steps in one machine results in an enormous potential for process rationalizing – production times are minimized, partial processing steps are completely eliminated, cost of production is reduced
-Clean process due to and dust- and loss-free powder induction, even for difficult to wet, sticky or dusty powders
-Induction and dispersing of powders directly from silo (with intermediate buffer), BigBag, hopper, bag, barrel, etc.
-No adhesion in the vessel and installed components
-Fast and reproducible adjustment of the products due to an immediate and complete incorporation of the raw materials
-No induction of false air – powder transportation under vacuum in the dense stream
VIDEO DEMO WITH DIFFERENT PRODUCTS
youtube.com/watch?v=znDf8e2SBO0
- the equipment works in manner of quickly suct in carpopol powder from the funnel.while open tank.water for circulation
youtube.com/watch?v=M7zfoXP-Utc
-VT300-03 Vertical Inline Homogenizer for.hydrophopic products
youtube.com/watch?v=Ir5EW79FjuQ
-VT30-10 Dyna Flyers for gel viscosity:50000cps suck into tank circulation with water
youtube.com/watch?v=3ZaMVcBNFwk
-VT300-10 Dyna Flyers for CMC powder suck into tank circulation water
Package Item Included :
1x Motor 3 phase AC Induction motor , 1x 2 inch inlet outlet hose connector, 1x 25kgs powder funnel
- TECHNICAL PARAMETER
- MOTOR POWER (KW):7.5
- WORKING LIQUID FLOWRATE(LITRE/HR):60,000
- POWDER INDUCTION RATE(TON/HR):8
- MAX PRODUCTS VISCOSITY(MPAS):150,000
- STANDARD PACKING SIZE ( MM):600X600X900
- WEIGHT (KGS):90
- OPERATING ENVIRONMENT:0-200°C, 95% REL. HUMIDITY
- FUNNEL VOLUME (LITRE)-STANDARD:25
- FUNNEL TYPE:SS304 WITH COVER
- STATOR TYPE(STANDARD):SINGLE LAYER WITH 4MM SLOT
-The combination of processing steps in one machine results in an enormous potential for process rationalizing – production times are minimized, partial processing steps are completely eliminated, cost of production is reduced
-Clean process due to and dust- and loss-free powder induction, even for difficult to wet, sticky or dusty powders
-Induction and dispersing of powders directly from silo (with intermediate buffer), BigBag, hopper, bag, barrel, etc.
-No adhesion in the vessel and installed components
-Fast and reproducible adjustment of the products due to an immediate and complete incorporation of the raw materials
-No induction of false air – powder transportation under vacuum in the dense stream
VIDEO DEMO WITH DIFFERENT PRODUCTS
youtube.com/watch?v=znDf8e2SBO0
- the equipment works in manner of quickly suct in carpopol powder from the funnel.while open tank.water for circulation
youtube.com/watch?v=M7zfoXP-Utc
-VT300-03 Vertical Inline Homogenizer for.hydrophopic products
youtube.com/watch?v=Ir5EW79FjuQ
-VT30-10 Dyna Flyers for gel viscosity:50000cps suck into tank circulation with water
youtube.com/watch?v=3ZaMVcBNFwk
-VT300-10 Dyna Flyers for CMC powder suck into tank circulation water
